Galaxy Chains Pvt. Ltd. manufactures high-performance leaf chains, including LL, BL, and AL Series, designed for lifting, load handling, and industrial motion applications. These chains are widely used in forklifts, hoisting systems, and material handling equipment where high strength and reliability are critical.

IS 1072 ISO 4347 ASME B29.8

Request a Quote

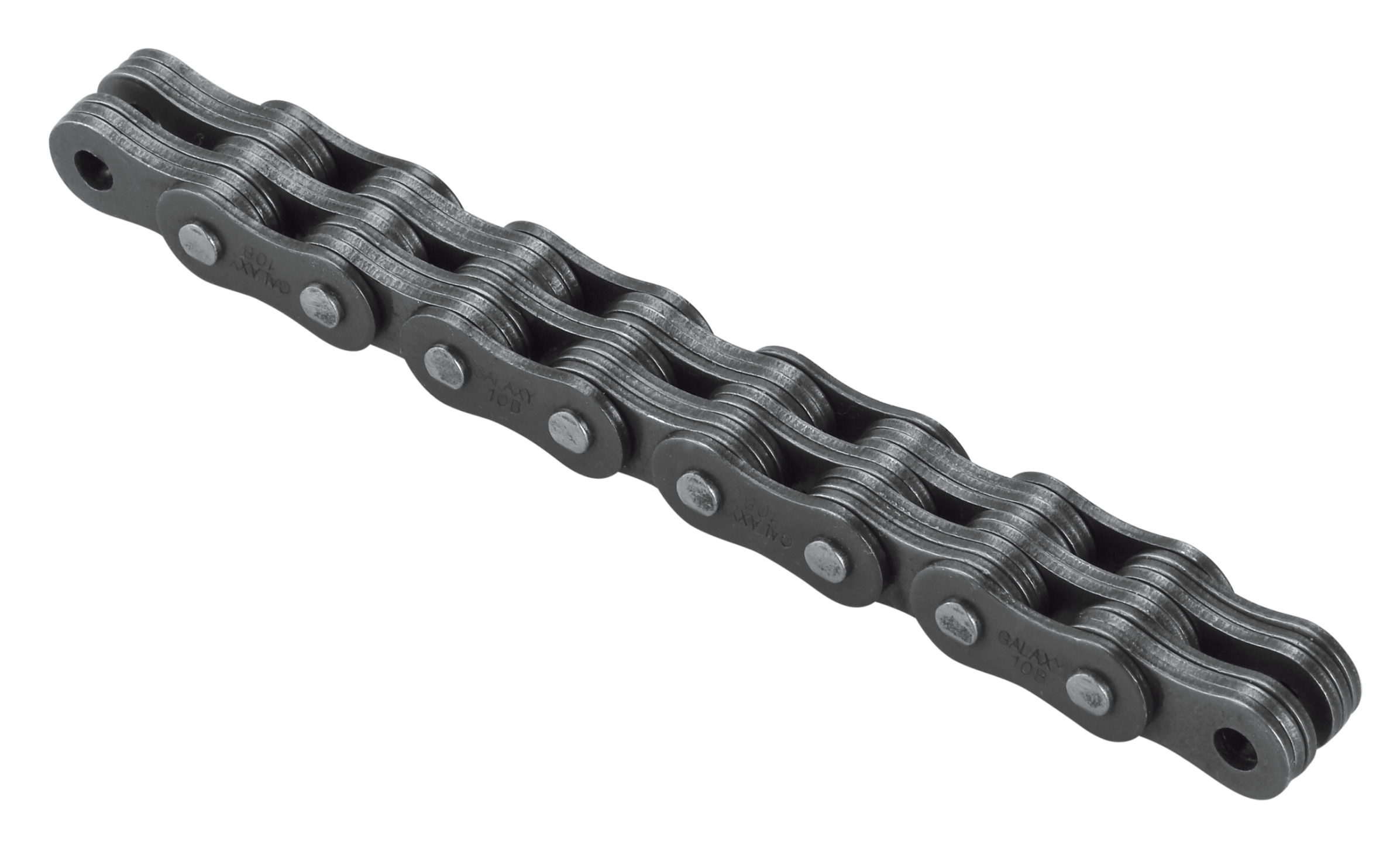

LL BL AL leaf chains — Galaxy Chains Pvt. Ltd.

specifications

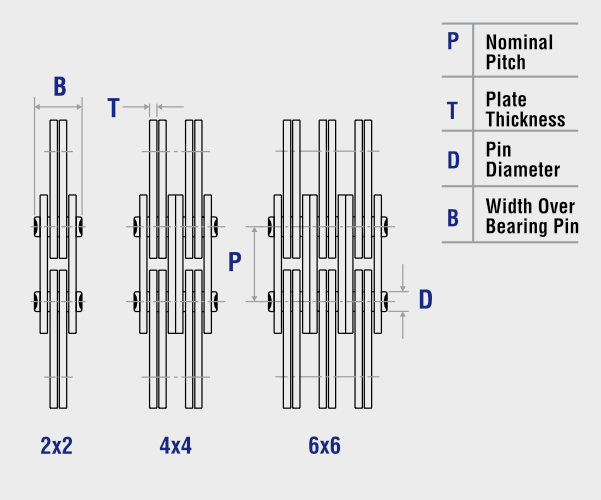

Technical Drawings & Specifications — LL, BL & AL Series Leaf Chains

Dimensional data, load capacities, and tensile ratings for LL, BL, and AL series leaf chains per IS 1072, ISO 4347, and ASME B29.8.

LL Series leaf chain — Galaxy Chains Pvt. Ltd.

Chain Number GALAXY No. / IS No.	Nominal Pitch 'P' (mm)	Lacing Pattern	Plate Thickness 'T' (mm)	Pin Diameter 'D' (mm)	Width Over Bearing Pin 'B' (mm)	Tensile Strength (Min) (KN)
GL 2208 LL 0822	12.70	2x2	1.55	4.45	8.50	18.00
GL 4408 LL 0844	12.70	4x4	1.55	4.45	14.60	36.00
GL 6608 LL 0866	12.70	6x6	1.55	4.45	20.70	54.00
GL 2210 LL 1022	15.88	2x2	1.65	5.08	10.00	26.00
GL 4410 LL 1044	15.88	4x4	1.65	5.08	17.10	50.00
GL 6610 LL 1066	15.88	6x6	1.65	5.08	24.10	78.00
GL 2212 LL 1222	19.05	2x2	1.83	5.72	10.70	33.00
GL 4412 LL 1244	19.05	4x4	1.83	5.72	18.10	66.00
GL 6612 LL 1266	19.05	6x6	1.83	5.72	25.40	99.00
GL 2216 LL 1622	25.40	2x2	3.20	8.28	17.20	70.00
GL 4416 LL 1644	25.40	4x4	3.20	8.28	29.30	140.00
GL 6616 LL 1666	25.40	6x6	3.20	8.28	41.30	210.00
GL 2220 LL 2022	31.75	2x2	3.75	10.19	20.30	105.00
GL 4420 LL 2044	31.75	4x4	3.75	10.19	36.50	210.00
GL 6620 LL 2066	31.75	6x6	3.75	10.19	51.50	315.00
GL 2224 LL 2422	38.10	2x2	5.00	14.63	26.50	175.00
GL 4424 LL 2444	38.10	4x4	5.00	14.63	46.50	350.00
GL 6624 LL 2466	38.10	6x6	5.00	14.63	67.50	525.00
GL 2228 LL 2822	44.45	2x2	6.00	15.90	36.70	200.00
GL 4428 LL 2844	44.45	4x4	6.00	15.90	56.40	400.00
GL 6628 LL 2866	44.45	6x6	6.00	15.90	80.30	600.00
GL 2232 LL 3222	50.80	2x2	6.45	17.81	30.50	260.00
GL 4432 LL 3244	50.80	4x4	6.45	17.81	54.50	520.00
GL 6632 LL 3266	50.80	6x6	6.45	17.81	80.50	780.00

BL Series leaf chain — Galaxy Chains Pvt. Ltd.

Chain Number ANSI No.	Pitch 'P' (in / mm)	Lacing Pattern	Plate Thickness 'T' (mm)	Pin Diameter 'D' (mm)	Width Over Bearing Pin 'W' (mm)	Tensile Strength (Min) (KN)
BL 422	1/2 12.70	2x2	2.08	5.09	11.05	22.20
BL 423	1/2 12.70	2x3	2.08	5.09	13.16	22.20
BL 434	1/2 12.70	3x4	2.08	5.09	17.40	33.40
BL 444	1/2 12.70	4x4	2.08	5.09	19.51	44.50
BL 446	1/2 12.70	4x6	2.08	5.09	23.75	44.50
BL 466	1/2 12.70	6x6	2.08	5.09	27.99	66.70
BL 488	1/2 12.70	8x8	2.08	5.09	36.45	89.00
BL 522	5/8 15.88	2x2	2.44	5.96	12.90	33.40
BL 523	5/8 15.88	2x3	2.44	5.96	15.37	33.40
BL 534	5/8 15.88	3x4	2.44	5.96	20.32	48.90
BL 544	5/8 15.88	4x4	2.44	5.96	22.78	66.70
BL 546	5/8 15.88	4x6	2.44	5.96	27.74	66.70
BL 566	5/8 15.88	6x6	2.44	5.96	32.69	100.10
BL 588	5/8 15.88	8x8	2.44	5.96	42.57	133.40
BL 622	3/4 19.05	2x2	3.30	7.94	17.37	48.90
BL 623	3/4 19.05	2x3	3.30	7.94	20.73	48.90
BL 634	3/4 19.05	3x4	3.30	7.94	27.43	75.60
BL 644	3/4 19.05	4x4	3.30	7.94	30.78	97.90
BL 646	3/4 19.05	4x6	3.30	7.94	37.49	97.90
BL 666	3/4 19.05	6x6	3.30	7.94	44.20	146.80
BL 688	3/4 19.05	8x8	3.30	7.94	57.61	195.70
BL 822	1 25.40	2x2	4.09	9.54	21.34	84.50
BL 823	1 25.40	2x3	4.09	9.54	25.48	84.50
BL 834	1 25.40	3x4	4.09	9.54	33.76	129.00
BL 844	1 25.40	4x4	4.09	9.54	37.90	169.00
BL 846	1 25.40	4x6	4.09	9.54	46.18	169.00
BL 866	1 25.40	6x6	4.09	9.54	54.46	253.60
BL 888	1 25.40	8x8	4.09	9.54	71.02	338.10
BL 1022	1 1/4 31.75	2x2	4.90	11.11	25.37	115.60
BL 1023	1 1/4 31.75	2x3	4.90	11.11	30.33	115.60
BL 1034	1 1/4 31.75	3x4	4.90	11.11	40.23	182.40
BL 1044	1 1/4 31.75	4x4	4.90	11.11	45.19	231.30
BL 1046	1 1/4 31.75	4x6	4.90	11.11	55.09	231.30
BL 1066	1 1/4 31.75	6x6	4.90	11.11	65.00	347.00
BL 1088	1 1/4 31.75	8x8	4.90	11.11	84.81	462.60
BL 1222	1 1/2 38.10	2x2	5.77	12.71	29.62	151.20
BL 1223	1 1/2 38.10	2x3	5.77	12.71	35.43	151.20
BL 1234	1 1/2 38.10	3x4	5.77	12.71	47.07	244.60
BL 1244	1 1/2 38.10	4x4	5.77	12.71	52.88	302.50
BL 1246	1 1/2 38.10	4x6	5.77	12.71	64.52	302.50
BL 1266	1 1/2 38.10	6x6	5.77	12.71	76.15	453.70
BL 1288	1 1/2 38.10	8x8	5.77	12.71	99.42	605.00
BL 1422	1 3/4 44.45	2x2	6.55	14.29	33.55	191.30
BL 1423	1 3/4 44.45	2x3	6.55	14.29	40.16	191.30
BL 1434	1 3/4 44.45	3x4	6.55	14.29	53.37	315.80
BL 1444	1 3/4 44.45	4x4	6.55	14.29	59.97	382.60
BL 1446	1 3/4 44.45	4x6	6.55	14.29	73.18	382.60
BL 1466	1 3/4 44.45	6x6	6.55	14.29	86.39	578.30
BL 1488	1 3/4 44.45	8x8	6.55	14.29	112.80	765.10
BL 1622	2 50.80	2x2	7.52	17.46	39.10	289.10
BL 1623	2 50.80	2x3	7.52	17.46	46.58	289.10
BL 1634	2 50.80	3x4	7.52	17.46	61.72	440.40
BL 1644	2 50.80	4x4	7.52	17.46	69.29	578.30
BL 1646	2 50.80	4x6	7.52	17.46	84.43	578.30
BL 1666	2 50.80	6x6	7.52	17.46	99.57	857.40
BL 1688	2 50.80	8x8	7.52	17.46	129.84	1156.50

AL Series leaf chain — Galaxy Chains Pvt. Ltd.

Chain Number IS No.	Nominal Pitch 'P' (mm)	Lacing Pattern	Plate Thickness 'T' (mm)	Pin Diameter 'D' (mm)	Width Over Bearing Pin 'B' (mm)	Tensile Strength (Min) (KN)
AL 522	15.88	2x2	2.00	5.09	11.05	21.80
AL 544	15.88	4x4	2.00	5.09	19.40	43.60
AL 566	15.88	6x6	2.00	5.09	27.50	65.40
AL 622	19.05	2x2	2.42	5.94	13.00	37.00
AL 644	19.05	4x4	2.42	5.94	22.70	66.70
AL 666	19.05	6x6	2.42	5.94	32.20	100.10
AL 822	25.40	2x2	3.15	7.94	16.30	55.60
AL 844	25.40	4x4	3.15	7.94	29.40	113.40
AL 866	25.40	6x6	3.15	7.94	44.20	170.00
AL 1022	31.75	2x2	4.00	9.53	19.60	88.50
AL 1044	31.75	4x4	4.00	9.53	36.40	177.00
AL 1066	31.75	6x6	4.00	9.53	52.30	265.00
AL 1222	38.10	2x2	4.80	11.10	23.40	127.00
AL 1244	38.10	4x4	4.80	11.10	43.80	254.00
AL 1266	38.10	6x6	4.80	11.10	63.20	381.00
AL 1422	44.45	2x2	5.60	12.64	33.20	186.35
AL 1444	44.45	4x4	5.60	12.64	51.30	372.70
AL 1466	44.45	6x6	5.60	12.64	74.56	559.00
AL 1622	50.80	2x2	6.40	14.21	33.20	353.00
AL 1644	50.80	4x4	6.40	14.21	58.00	471.00
AL 1666	50.80	6x6	6.40	14.21	83.80	706.00

Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.

Request Full Specification Sheet

manufacturer

LL, BL & AL Leaf Chains Manufacturer

Galaxy Chains Pvt. Ltd. is a leading LL, BL & AL leaf chains manufacturer in India, offering high-strength chains designed for lifting, tensioning, and material handling applications. Manufactured in accordance with IS 1072, ISO 4347, and ASME B29.8 standards, LL, BL, and AL series leaf chains are engineered to meet varying load and performance requirements across industrial applications.

LL, BL & AL leaf chains are built using precision components and high-quality materials to ensure excellent tensile strength, fatigue resistance, and long service life. Widely used in forklifts, overhead cranes, hoisting systems, and industrial equipment, these chains deliver reliable and consistent performance in demanding load-bearing environments.
