Agriculture Feeder & Elevator Chains — Reliable Chains for Crop Handling Systems

Galaxy Chains Pvt. Ltd. manufactures high-performance agriculture feeder chains and elevator chains designed for efficient crop handling, processing, and material movement in agricultural applications. These chains are widely used in harvesting equipment, grain handling systems, and processing machinery where reliability and durability are essential.

ASME B29.100-2011
Back to Agriculture Chains

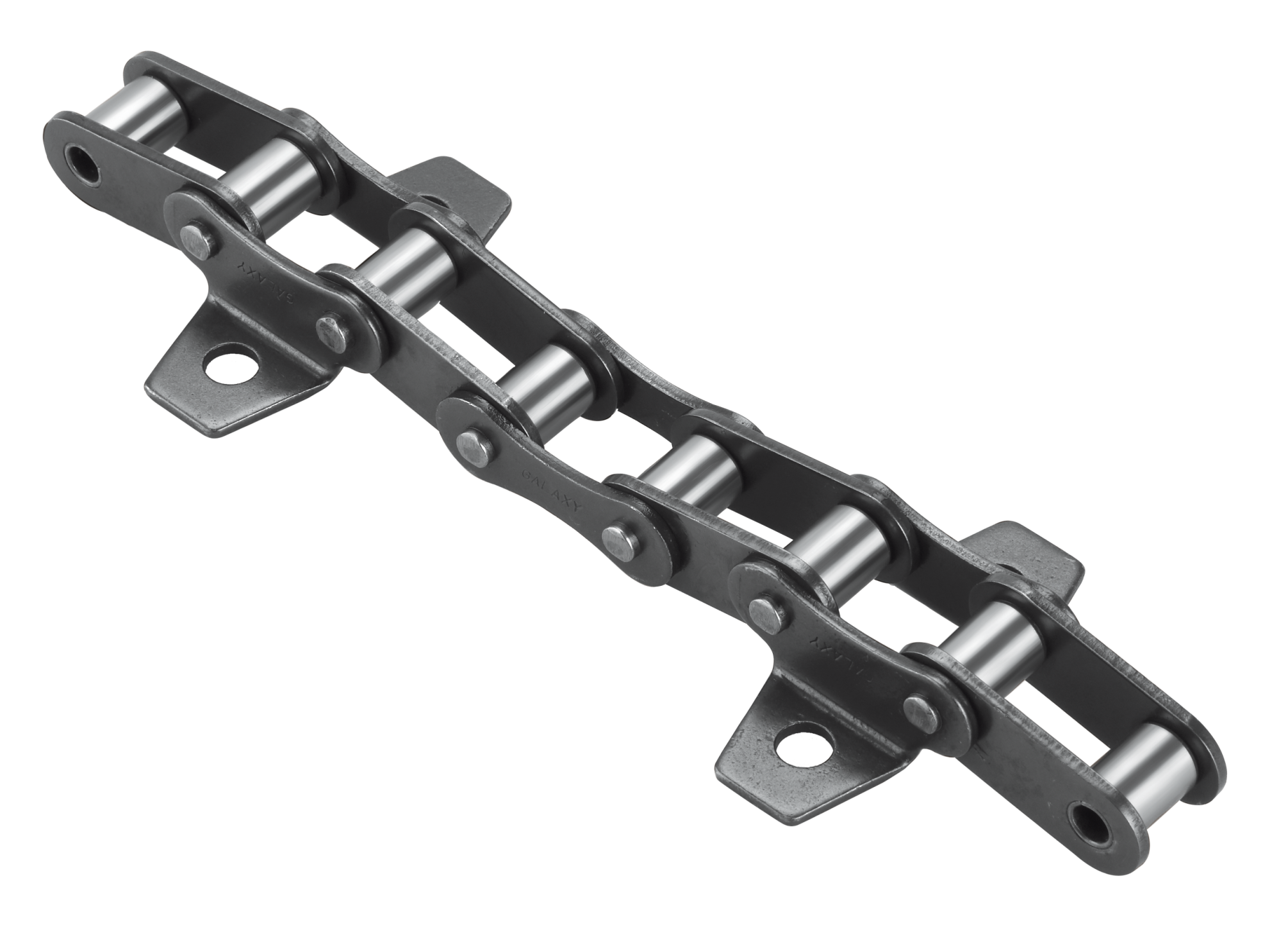

Agriculture feeder and elevator chains — Galaxy Chains Pvt. Ltd.

specifications

Technical Drawings & Specifications — Agriculture Feeder & Elevator Chains

Dimensional data for agriculture feeder and elevator chains — pitch, roller diameter, plate dimensions, and attachment details.

FEEDER CHAIN

Feeder Chain — Galaxy Chains Pvt. Ltd.

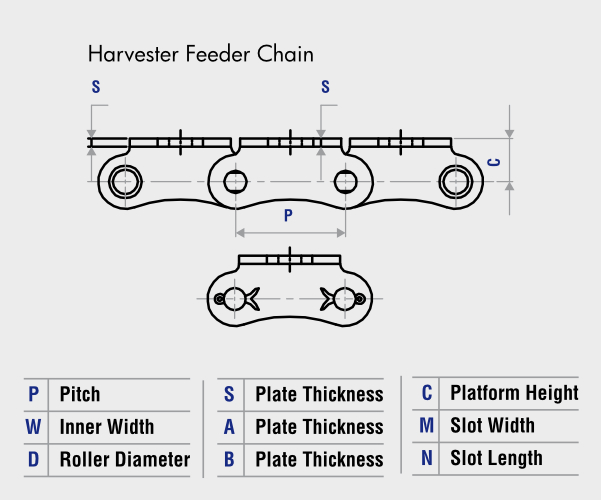

Feeder Chain technical drawing
Chain Number Pitch 'P'
Inch		 Inner Width 'W' (Min)
(mm)		 Roller Diameter 'D1' (Max)
(mm)		 Pin Diameter 'D2' (Max)
(mm)		 Plate Thickness 'S'
(mm)		 A'
(mm)		 B' (Max)
(mm)		 Platform Height 'C'
(mm)		 Slot Width 'M' (Min)
(mm)		 Slot Length 'n' (Min)
(mm)
S B41
Feeder Chain 		41.30 21.40 15.88 8.28 3.20 35.00 47.65 16.00 11.50 9.00

Contact Galaxy Chains Pvt. Ltd. for custom attachments, lengths, and full catalogue data.

Request Full Specification Sheet

manufacturer

Agriculture Feeder & Elevator Chains Manufacturer

Galaxy Chains Pvt. Ltd. is a leading agriculture feeder & elevator chains manufacturer in India, offering high-performance chains designed for crop handling, feeding, and vertical conveying applications. Manufactured using precision-engineered components and durable materials, these chains ensure reliable performance in demanding agricultural environments.

Agriculture feeder & elevator chains are built to deliver excellent strength, wear resistance, and long service life in conditions involving dust, moisture, and continuous operation. Widely used in harvesting equipment, grain handling systems, and processing machinery, these chains provide smooth and efficient material movement across agricultural applications.
