Extended Pitch Roller Chains — Optimised for Industrial Applications

Galaxy Chains Pvt. Ltd. manufactures high-performance extended pitch roller chains designed for industrial applications where longer pitch, reduced weight, and efficient performance are essential. These chains are ideal for material handling, power transmission, and machinery requiring extended centre distances.

ASME B29.100-2011

Back to Extended Pitch Chains

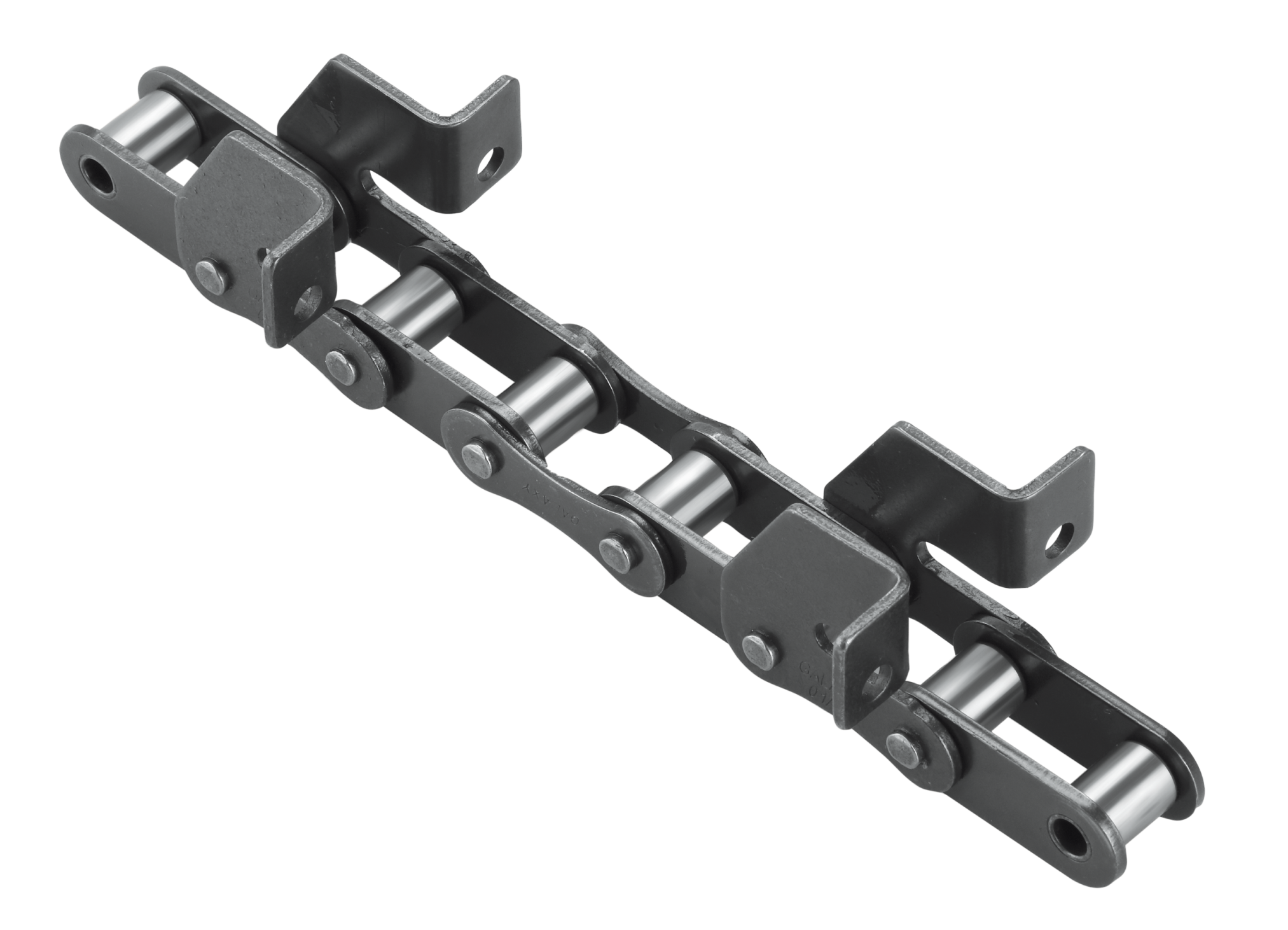

Extended pitch roller chains — Galaxy Chains Pvt. Ltd.

specifications

Technical Drawings & Specifications — Extended Pitch Roller Chains

Dimensional and performance data for extended pitch roller chains — pitch, roller diameter, plate height, and tensile ratings.

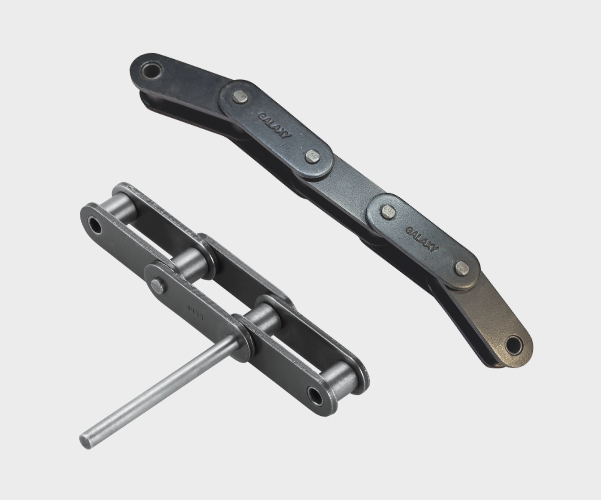

Extended pitch roller chain — Galaxy Chains Pvt. Ltd.

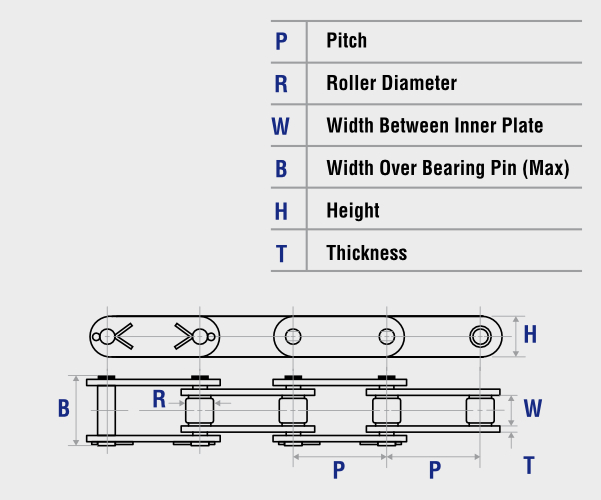

Extended pitch roller chain technical drawing

Chain Number	Pitch 'P' (mm)	Roller Small Diameter 'R' (mm)	Roller Large Diameter 'R' (mm)	Width Between Inner Plate 'W' (mm)	Pin Diameter (mm)	Chain Width 'B' (mm)	Side Plate Height 'H' (mm)	Side Plate Thickness 'T' (mm)	Tensile Strength (Min) (KN)
2050	31.75	10.16	19.05	9.53	5.08	23.50	15.00	2.03	21.71
2060	38.10	11.91	22.23	12.70	5.94	28.70	18.00	2.39	31.27
2080	50.80	15.88	28.58	15.88	7.92	35.50	24.00	3.18	55.60
2100	63.50	19.05	39.67	19.05	9.53	42.21	28.70	3.96	86.87
2120	76.20	22.23	44.45	25.40	11.10	52.42	35.50	4.75	125.10
2160	101.60	28.58	57.15	31.75	14.27	67.31	47.59	6.35	222.40

Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.

Request Full Specification Sheet
