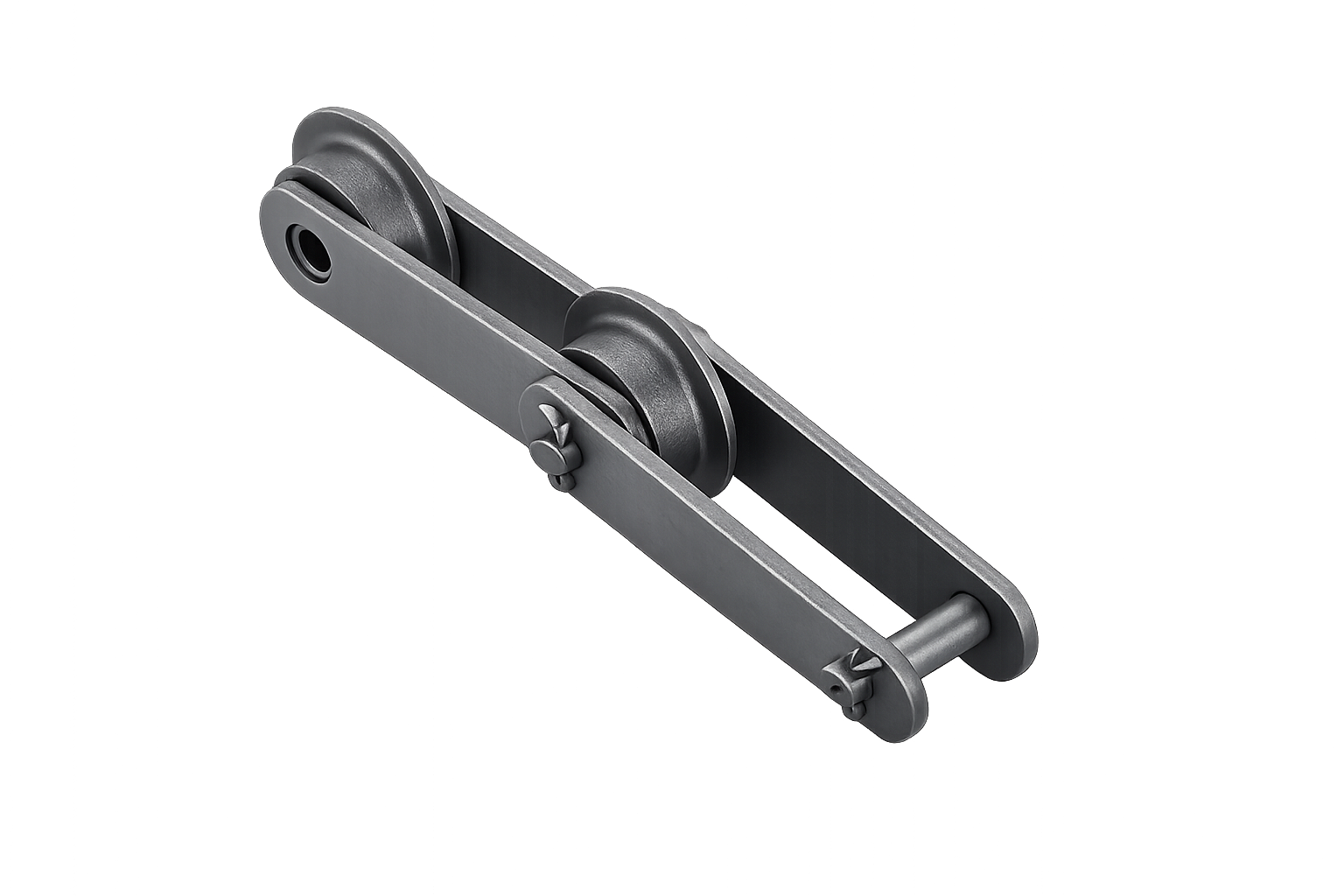

Galaxy Chains Pvt. Ltd. manufactures high-performance small and flanged roller conveyor chains designed for precision conveying and controlled material movement in industrial applications. These chains are ideal for systems requiring accurate alignment, smooth operation, and consistent performance.
Back to Roller Conveyor Chains
Dimensional and performance data for small and flanged roller conveyor chains — pitch, roller diameter, plate height, and tensile ratings.

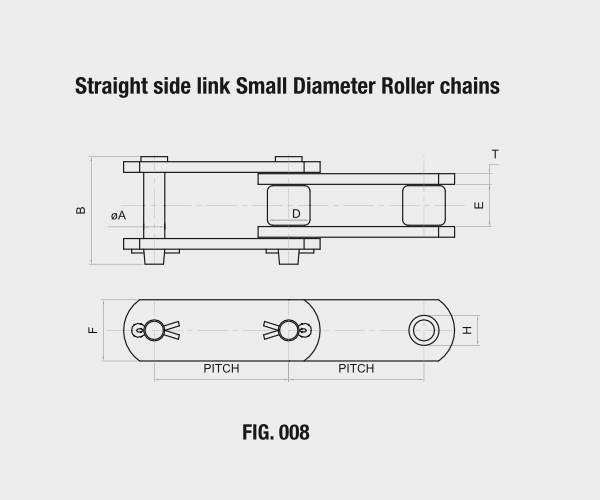

| CHAIN NO. | PITCH | A | B | D | E | F | T | H | AVERAGE BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|---|
| 620 | 42.01 | 9.53 | 49.00 | 22.40 | 25.40 | 28.00 | 3.10 | 14.30 | 5100 |
| 622 | 42.01 | 11.13 | 56.00 | 22.40 | 25.40 | 28.00 | 5.00 | 15.88 | 9080 |
| 388 | 66.27 | 10.87 | 55.70 | 22.40 | 25.40 | 28.00 | 5.00 | 15.88 | 10900 |
| 881 | 66.27 | 11.13 | 56.90 | 22.40 | 28.70 | 28.00 | 5.00 | 15.88 | 9080 |
| 882 | 66.27 | 11.13 | 63.00 | 22.40 | 28.70 | 28.00 | 6.00 | 15.88 | 11800 |
| 2010 | 63.50 | 15.82 | 84.60 | 31.80 | 38.10 | 45.00 | 8.00 | 22.50 | 23500 |
| 3200 | 63.50 | 19.71 | 88.20 | 39.60 | 39.10 | 55.00 | 8.00 | 22.50 | 35000 |
| 040 | 78.11 | 15.88 | 84.60 | 31.80 | 38.10 | 38.00 | 8.00 | 22.50 | 12710 |
| 1031 | 78.11 | 15.88 | 84.60 | 31.80 | 38.10 | 38.00 | 8.00 | 22.50 | 20000 |
| 031 | 78.11 | 15.88 | 100.00 | 31.80 | 38.10 | 45.00 | 10.00 | 22.50 | 22500 |
| 032 | 78.11 | 15.88 | 100.00 | 31.80 | 38.10 | 45.00 | 10.00 | 22.50 | 34050 |
| 4824 | 152.40 | 38.10 | 184.00 | 76.20 | 76.20 | 101.60 | 18.50 | 50.80 | 176000 |

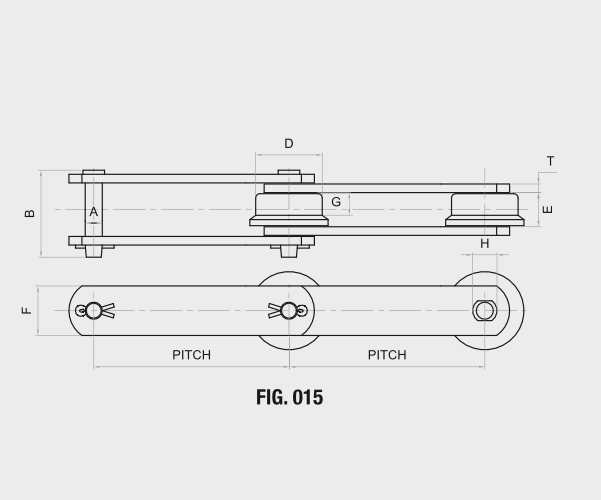

| CHAIN NO. | PITCH | A | B | D | E | F | G | H | L | M | T | AVERAGE BREAKING LOAD (KGF) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NORMAL | H-SERIES | ||||||||||||
| 6512 | 152.40 | 15.88 | 84.80 | 76.20 | 41.40 | 50.80 | 28.70 | 23.90 | 4.80 | 10.40 | 6.40 | 11800 | 20000 |
| 9018 | 228.60 | 19.05 | 107.20 | 101.60 | 50.80 | 50.80 | 31.80 | 28.70 | 3.30 | 11.20 | 9.70 | 18610 | 24000 |
| 12040 | 304.80 | 19.05 | 143.70 | 101.60 | 50.80 | 50.80 | 31.80 | 28.70 | 4.10 | 10.40 | 9.70 | 18610 | 40000 |
Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.
