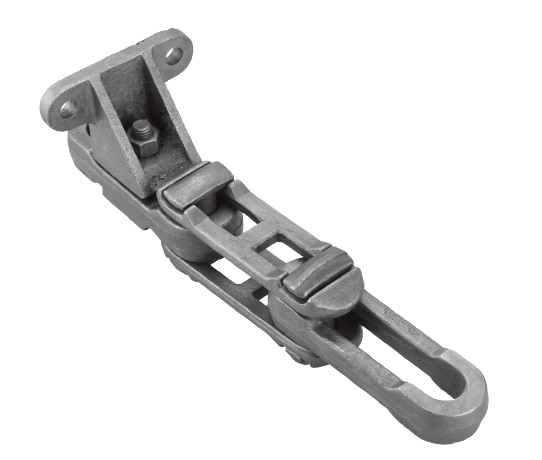

Galaxy Chains Pvt. Ltd. manufactures forged link conveyor chains — rivetless type and drag chains — for steel plants, mining, power generation, and the most demanding bulk material handling applications.
Back to Forged Link Conveyor Chains
Dimensional data for rivetless type and drag forged chains — pitch, sidebar dimensions, plate thickness, and breaking load ratings.

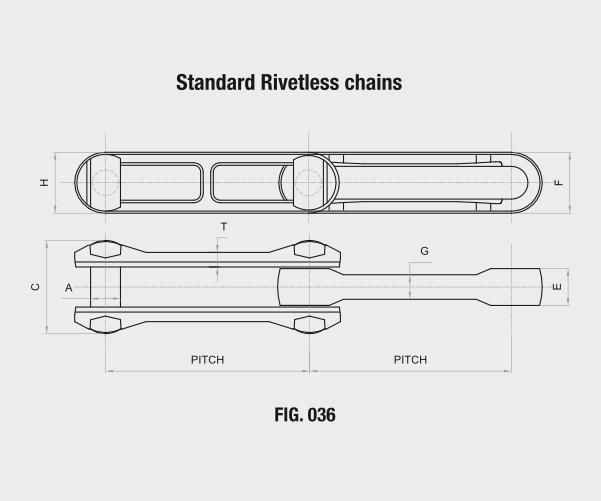

| CHAIN NO. | PITCH | A | C | R | F | G | H | K | T | AVERAGE BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|---|---|
| 698 | 153.19 | 28.58 | 95.30 | 39.60 | 68.30 | 25.40 | 65.80 | 31.80 | 14.20 | 59000 |
| S698 | 153.19 | 28.58 | 82.60 | 39.60 | 68.30 | 25.40 | 63.50 | 31.80 | 12.70 | 59000 |
| 9118 | 229.39 | 34.93 | 124.00 | 50.00 | 77.70 | 33.30 | 76.20 | 38.10 | 19.80 | 90000 |
| S9118 | 229.39 | 34.93 | 111.30 | 50.00 | 77.70 | 33.30 | 76.20 | 38.10 | 19.10 | 90000 |

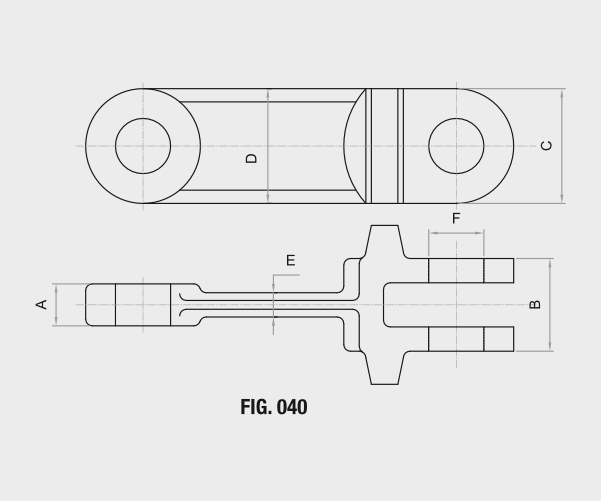

| CHAIN NO. | PITCH | A | B | C | D | E | F | AVERAGE BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|
| 500 | 142.00 | 19.00 | 42.00 | 50.00 | 50.00 | 11.00 | 25.00 | 25000 |
| 511 | 142.00 | 19.00 | 44.00 | 50.00 | 50.00 | 14.00 | 25.00 | 25000 |
| 515 | 142.00 | 30.00 | 63.00 | 50.00 | 50.00 | 18.00 | 25.00 | 35000 |
| MI545 | 150.00 | 32.00 | 61.00 | 60.00 | 50.00 | 20.00 | 28.00 | 45000 |
| 960 | 229.00 | 32.00 | 65.00 | 70.00 | 55.00 | 22.00 | 32.00 | 60000 |
| 507 | 260.00 | 35.00 | 77.00 | 78.00 | 76.00 | 22.00 | 32.00 | 60000 |
Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.
