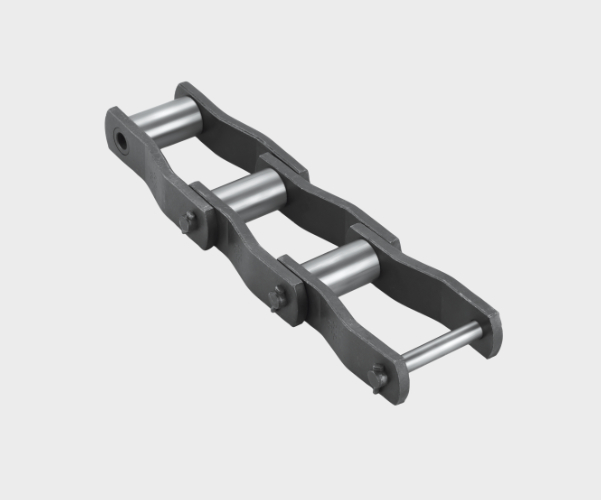

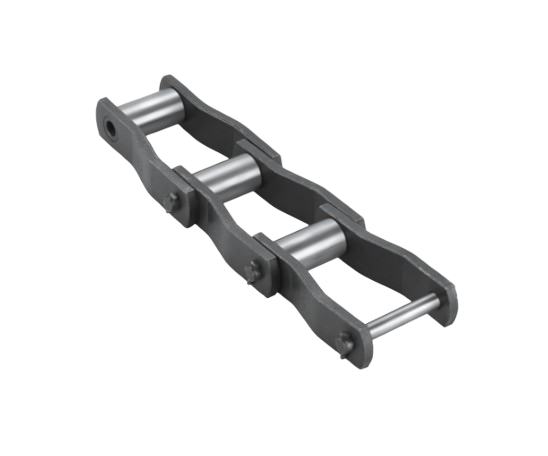

Galaxy Chains Pvt. Ltd. manufactures high-performance bushed conveyor chains designed for heavy-duty conveying and material handling applications. These chains are built without rollers, making them ideal for systems involving sliding contact, abrasive materials, and continuous operation.
Back to Bushed Conveyor Chains

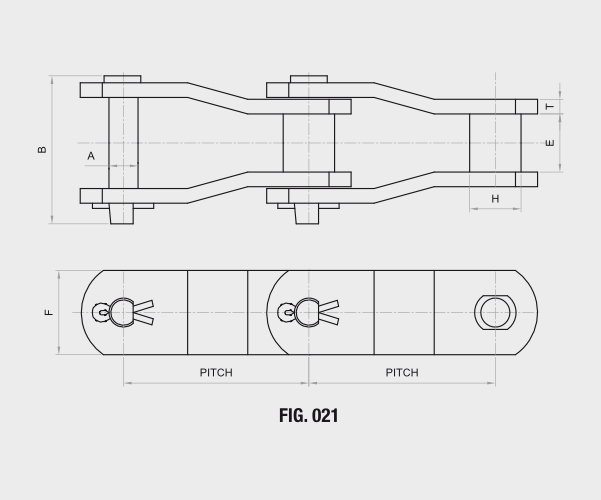

Dimensional and performance data for bushed conveyor chains — pitch, bush diameter, plate height, and tensile ratings.
| CHAIN NO. | PITCH | A | B | E | G | H | T | AVERAGE BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|
| 78 | 66.27 | 12.70 | 67.00 | 28.70 | 28.70 | 22.40 | 6.40 | 10900 |
| 82 | 78.11 | 12.70 | 73.00 | 31.80 | 38.10 | 31.80 | 6.40 | 11800 |
| 124 | 101.60 | 14.10 | 95.00 | 54.10 | 38.10 | 25.40 | 9.14 | 20880 |
| 844 | 152.40 | 19.05 | 131.80 | 63.50 | 50.80 | 30.20 | 12.70 | 31780 |
| 132 | 153.67 | 18.50 | 145.00 | 85.10 | 50.80 | 44.50 | 12.70 | 35000 |
| 2530 | 250.00 | 25.00 | 104.00 | 45.00 | 65.00 | 40.00 | 10.00 | 30000 |
| 2535 | 250.00 | 26.00 | 112.00 | 45.00 | 65.00 | 40.00 | 12.00 | 35000 |
| 2545 | 250.00 | 26.00 | 112.00 | 45.00 | 70.00 | 40.00 | 12.00 | 45000 |
| 2550 | 250.00 | 27.00 | 104.00 | 45.00 | 80.00 | 40.00 | 10.00 | 50000 |
| 2532 | 250.00 | 32.00 | 150.00 | 65.00 | 75.00 | 45.00 | 14.00 | 32000 |
| 2540 | 250.00 | 36.00 | 160.00 | 65.00 | 80.00 | 50.00 | 16.00 | 40000 |
| 2568 | 250.00 | 36.00 | 175.00 | 80.00 | 100.00 | 54.00 | 16.00 | 68000 |
| 2570 | 250.00 | 38.00 | 156.00 | 75.00 | 100.00 | 56.00 | 14.00 | 70000 |
| 25100 | 250.00 | 38.00 | 180.00 | 75.00 | 100.00 | 56.00 | 20.00 | 100000 |
Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.
