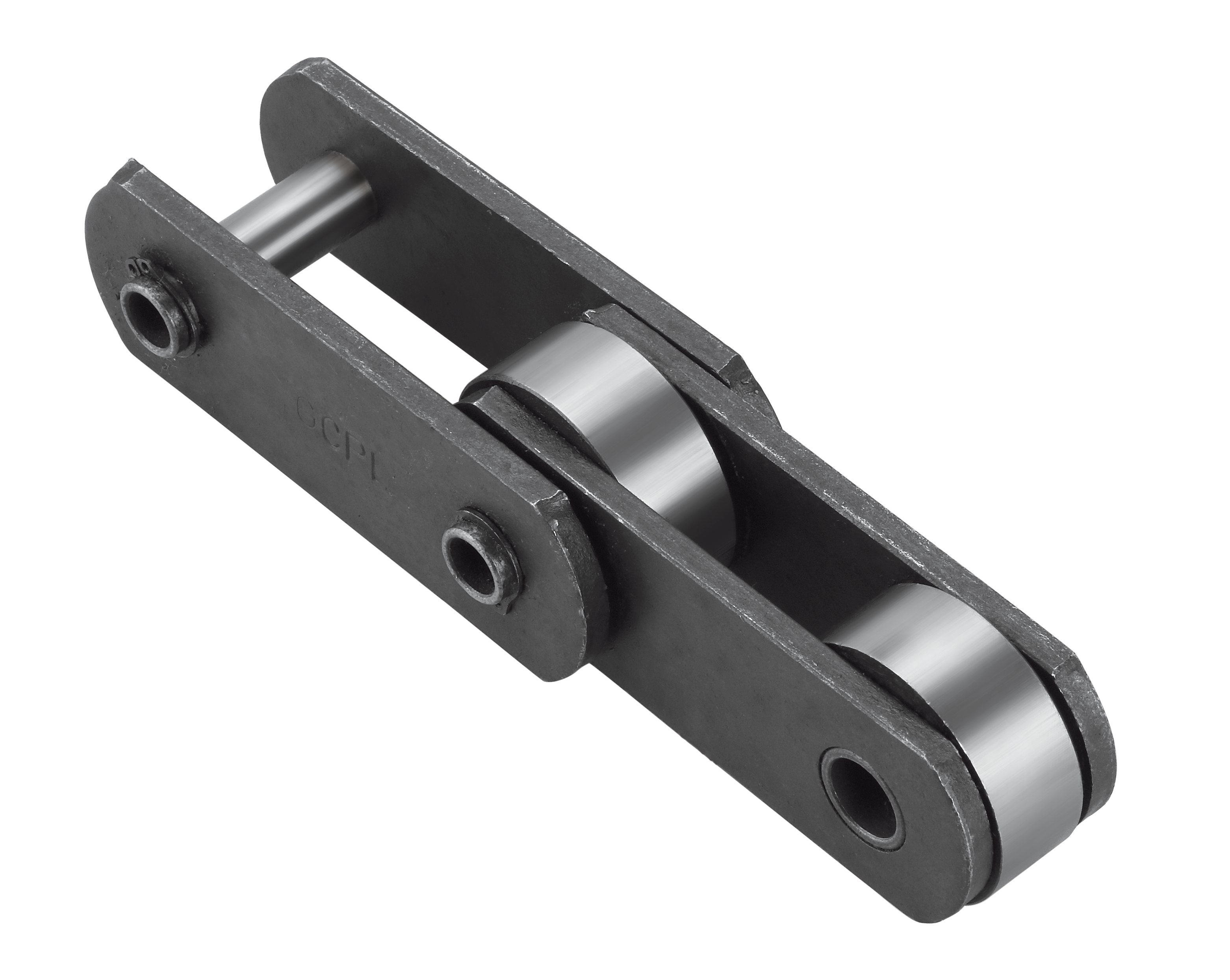

Galaxy Chains Pvt. Ltd. manufactures high-performance bearing pin chains, including hollow pin and solid pin variants, designed for industrial conveying applications requiring flexibility, strength, and reliability. These chains are widely used in material handling systems, automated lines, and heavy-duty industrial environments.
Back to Hollow & Solid Pin Chains
Dimensional and performance data for hollow and solid bearing pin chains — pitch, pin diameter, plate height, and tensile ratings.

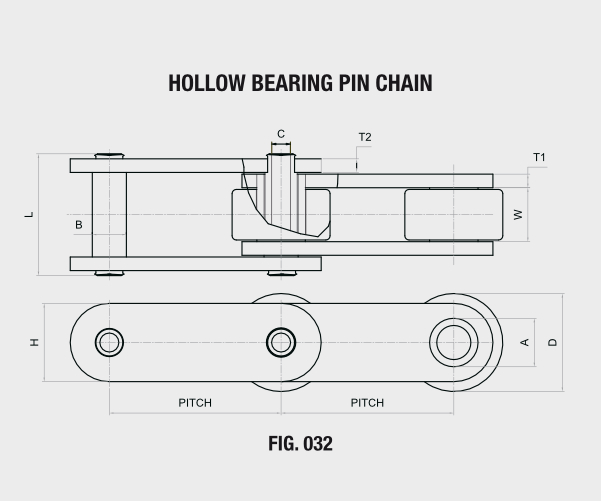

| CHAIN NO. | PITCH | W | D | A | B | C | L | H | T1 | T2 | BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP272-6 | 50.80-152.40 | 15.0 | 31.8 | 18.0 | 14.0 | 10.1 | 36.5 | 25.4 | 3.9 | 3.9 | 2750 |
| HP552-9 | 50.80-228.60 | 19.0 | 47.6 | 23.6 | 19.0 | 13.2 | 44.0 | 38.1 | 5.0 | 3.9 | 5500 |
| HP110-12 | 101.60-304.80 | 25.4 | 66.7 | 33.2 | 26.9 | 20.1 | 57.0 | 50.8 | 6.6 | 5.0 | 11000 |

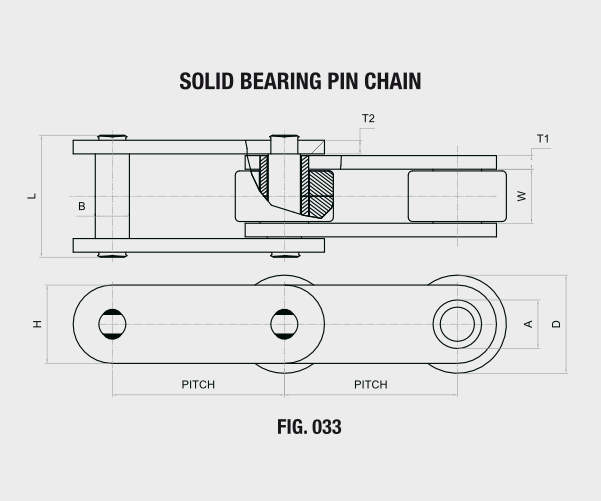

| CHAIN NO. | PITCH | W | D | A | B | L | H | T1 | T2 | BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|---|---|---|
| SP302-6 | 50.80-152.40 | 15.0 | 31.8 | 18.0 | 14.0 | 36.5 | 25.4 | 3.9 | 3.9 | 3000 |
| SP802-9 | 50.80-228.60 | 19.0 | 47.6 | 23.6 | 19.0 | 44.0 | 38.1 | 5.0 | 3.9 | 8000 |
| SP1364-2 | 101.60-304.80 | 25.4 | 66.7 | 33.2 | 26.9 | 57.0 | 50.8 | 6.6 | 5.0 | 13600 |
Contact Galaxy Chains Pvt. Ltd. for cross-bar attachments, custom pin lengths, and full catalogue data.
Galaxy Chains Pvt. Ltd. is a trusted bearing pin chains manufacturer in India, supplying both hollow and solid pin bearing chains for diverse industrial conveying applications. Our chains are designed to deliver durability, flexibility, and consistent performance across a wide range of operating conditions.
Contact our technical team to discuss your chain requirements or request a custom quotation.
